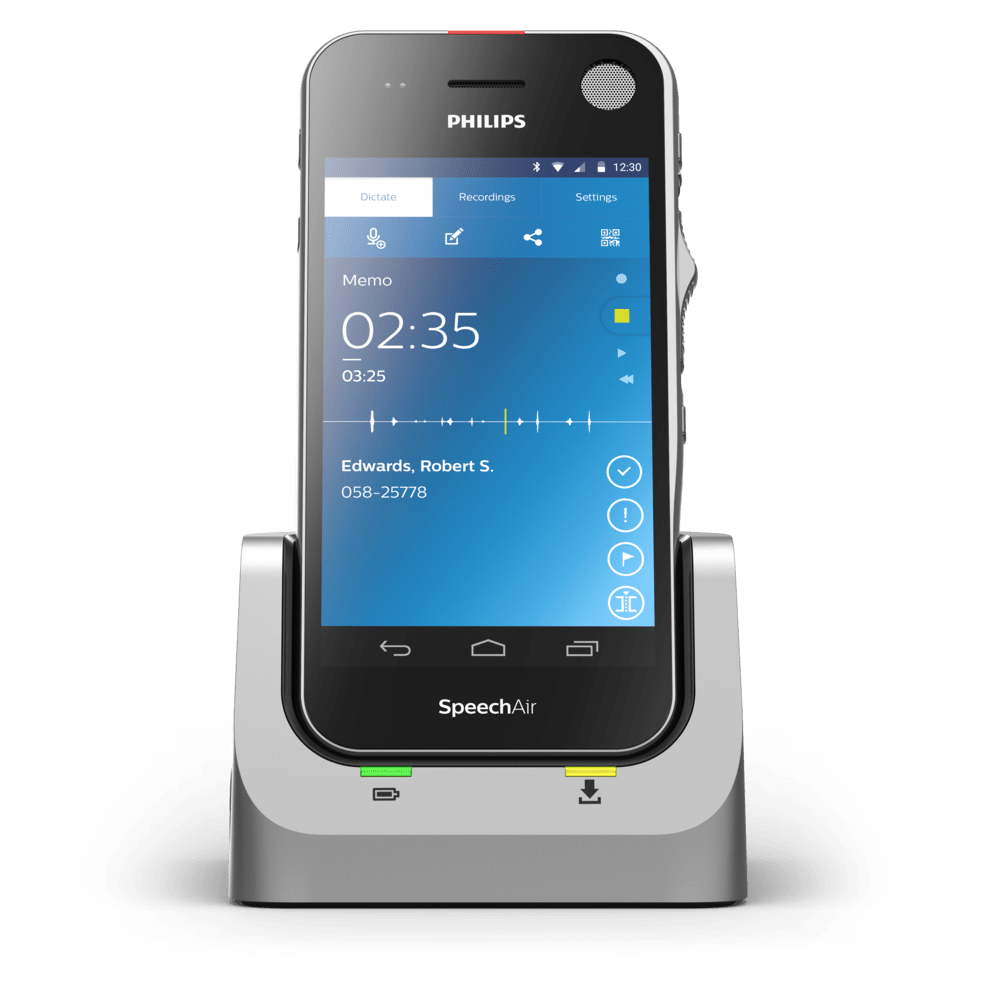

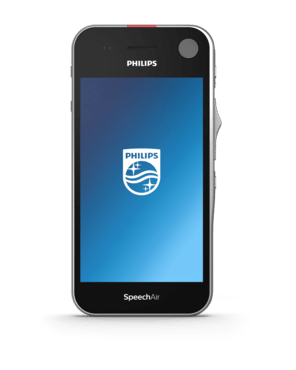

SpeechAir Smart Digital Voice Recorder PSP1100

Smart recording on the go

with Wi-Fi and three professional microphones
Smart recording on the go with Wi-Fi and three professional microphones. The SpeechAir smart voice recorder saves you time and resources by allowing you to work more flexibly than ever before. Integrated Wi-Fi functionality facilitates quick file download from any network. Recordings are encrypted in real time for maximum data security. The device also features three microphones dedicated to outstanding voice recording quality.

datasheet DATASHEET


  • PSP 1000
  • DESCRIPTION
  • SPECIFICATIONS

psp1100 philips speechair

SpeechAir Smart Digital Voice Recorder PSP1000

Smart recording on the go

with Wi-Fi and three professional microphones
The SpeechAir Smart Voice Recorder saves you time and resources by allowing you to work more flexibly than ever before. Integrated Wi-Fi functionality facilitates quick file download from any network. Recordings are encrypted in real time for maximum data security. The device also features three microphones dedicated to outstanding voice recording quality.

datasheet DATASHEET


Highlights


Superior audio quality and design
  • Three dedicated microphones for optimized voice recording
  • Large speaker for crystal clear audio playback
  • Gorilla glass touch screen and shockproof, antimicrobial housing for durability
  • Wear-free slide switch and function key for ultimate usability

Three dedicated microphones

  • for optimized voice recording

Wear-free slide switch and function key

  • for ultimate usability

Barcode scanner and camera

  • for quick file association




FEATURES

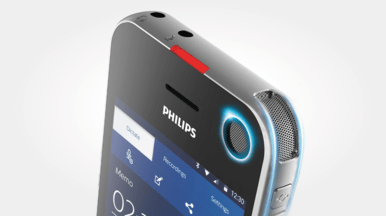

Three dedicated microphonesThree dedicated microphones for optimized voice recording

Three professional microphones deliver ultimate sound quality in any recording situation. The 360° microphone is ideal for recording dictations and meetings. The direction microphone is best suited for noisy environments. For VoIP telephony the SpeechAir uses a dedicated microphone.

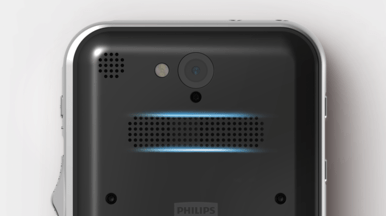

Large speaker for crystal clear audio playbackLarge speaker for crystal

The large speaker allows you to playback your recordings in crystal-clear audio quality.

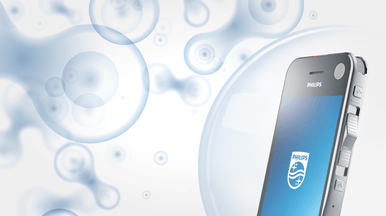

Gorilla glass touch screenGorilla glass touch screen and shockproof, hygienic housing for durability

Gorilla glass makes the device scratch and shock resistant. The device is shockproof according to US military standard 516.6. The hygienic surface of the housing physically hinders the colonization of germs and thus improves the efficiency of the usual measures for disinfecting the device.

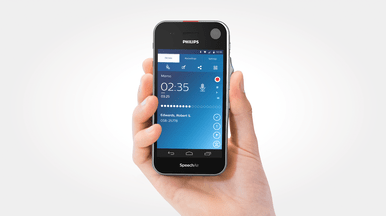

Wear-free slide switch and function key for ultimate usabilityWear free slide switch

The ergonomic and wear-free slide switch is designed for efficient single-handed operation without having to look down at the device. It allows for quick and easy dictation handling (play, pause, stop, fast forward, fast rewind). A customizable function key above the slider gives quick access to the dictation app.

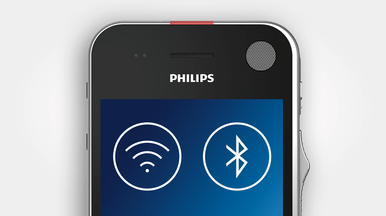

Wi Fi LAN BluetoothWi-Fi, LAN, Bluetooth, USB and VoIP to stay connected anywhere you go

Save time by transferring your finished recordings wirelessly to your transcription staff and directly access patient or client data. Use Wi-Fi for VoIP calls and access your emails and calendar. Use Bluetooth to send and receive data or to connect external speakers.

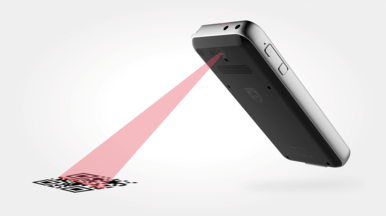

Barcode scanner and camera for quick file associationBarcode scanner and camera

The camera allows you to conveniently attach photos supporting your dictations. It can also be used as an integrated barcode scanner linking patient and client data to a recording.

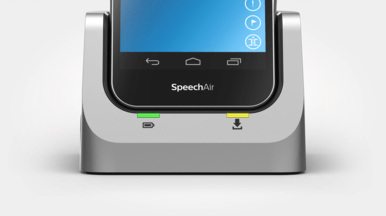

Docking stationDocking station for fast battery charging

The docking station with an anti-theft system (Kensington lock) automatically transfers all your recordings to your computer and quickly re-charges your device. The LAN connection allows you to transfer your files directly from the docking station without a computer.

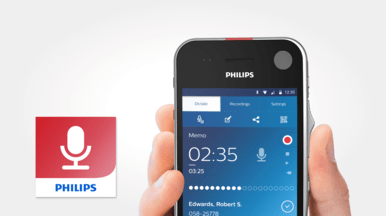

Philips dictation recorder app with professional dictation featuresPhilips dictation recorder

The integrated recorder app comes with professional dictation features such as editing modes, priority, EOL flag, enhanced data and dictation list as well as sending options (to network folder, Philips SpeechLive services or email recipients).

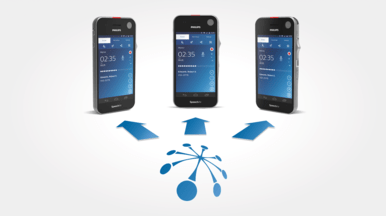

Optional remote administrationOptional remote administration for hassle-free central administration

Optional remote administration using Philips Remote Device Management software allows IT administrators to manage, configure and update dictation hardware centrally, saving valuable time and resources









File encryption for maximum data securityFile encryption for maximum

Recordings are encrypted in real time using the Advanced Encryption Standard (AES) 256bit, which has been approved in the USA for the most highly classified government information. A PIN code protects the device against unauthorized use. Settings can be locked, for instance connection to Wi-Fi networks can be restricted.

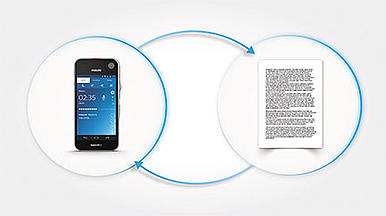

Dictation software forDictation software for an efficient workflow

SpeechAir also comes with Philips SpeechExec Pro Dictate software for an efficient and streamlined offline office workflow (PSP1200). The Philips SpeechLive service transfers your dictation workflow to the cloud and features online speech recognition and a transcription service.













Technical Specifications

Connectivity

Headphones: 3.5 mm / 1.4 inches

Microphone: 3.5 mm / 1.4 inches

Micro-SD card socket

USB: High-speed USB 2.0

Wi-Fi: IEEE 802.11 a/b/g/n

Bluetooth: 4.0

Display

Type: IPS with 16 million colors

Screen type: scratch resistant Gorilla glass touch screen

Diagonal screen size: 10.16 cm / 4 inches

Resolution: 480 × 800 pixels



Audio

Recording format: AMR, ACC

Playback format: MPEG (MP1, MP2, MP3), WMA, WAV, APE, OGG (OGG, OGA), FLAC, AAC (AAC, M4A)






Speaker type: built-in rectangular dynamic speaker

Dimensions front speaker: 6 × 12 mm / 0.2 × 0.5 inches

Dimensions rear speaker: 11 × 15 mm / 0.4 × 0.6 inches

Microphones

Directional microphone: for speech recognition

360° microphone: for meetings and dictation

MEMS microphone: for VoIP telephony

Philips dictation recorder app

Recording modes: DSS Pro (DS2/mono), PCM Voice (WAV/mono)

Bit rate: 28 kbit/s (DSS Pro), 256 kbit/s (PCM Voice)

Edit modes: insert, overwrite, append

Recording time: 1073 hours (DS2), 117 hours (WAV)

Sample rate: 16 kHz / 16 bit

Supported barcodes: Code 39, Code 93, Codabar, Code128, Code 25, Code 11, MSI-Plessey, EAN, UPC, QR code, Data Matrix

Camera

Resolution: 5 Megapixels

Autofocus

Flash

Image formats (supported by operating system): JPG, JPEG, BMP, GIF, PNG

Video recording formats (supported by operating system): H.264 / AVC (MOV, 3GP) up to 1920 × 1088 pixels (30fps)

Video playback formats (supported by operating system)

Power

Battery type: built-in rechargeable Li-ion battery

Battery capacity: 2700 mAh

Battery lifetime: up to 12 hours of recording (DSS QP mode)

Standby time: up to 97 hours

Charging time (full charge): approx. 3 hours





Docking Station

Product dimensions (W × D × H): 82 × 77 × 56 mm / 3.2 × 3.0 × 2.2 inches

Weight: 264 g / 9.3 oz

LAN connection

Kensington lock

Removable magnetic inlay for use with case

Green specifications

Compliant to 2011/65/EU (RoHS)

Operation conditions

Temperature: -5° – 45° C / 23° – 113° F

Humidity: 10 % – 90 %, noncondensing

Security

Real-time file encryption

Encryption standard (Philips dictation recorder app): Advanced Encryption Standard (AES) 256 bits

Device lock with PIN code or password

Configurable security settings with Software Development Kit (SDK) or configuration software

Lockable settings

Package contents

SpeechAir Smart Voice Recorder

Docking Station

In-ear headphones

2 USB cables

Power supply with international adapters: US, UK, Europe, Asia Pacific

USB stick containing user manual

SpeechExec Pro Dictate Dictation Software (PSP1200)

SpeechExec Pro Dictation and Speech Recognition Software (PSE1200)

Philips SpeechAir Management Software

Quick start guide

Product dimensions

Product dimensions (W × D × H): 62 × 127 × 15 mm / 2.4 × 5.0 × 0.6 inches

Weight: 160 g / 5.6 oz
